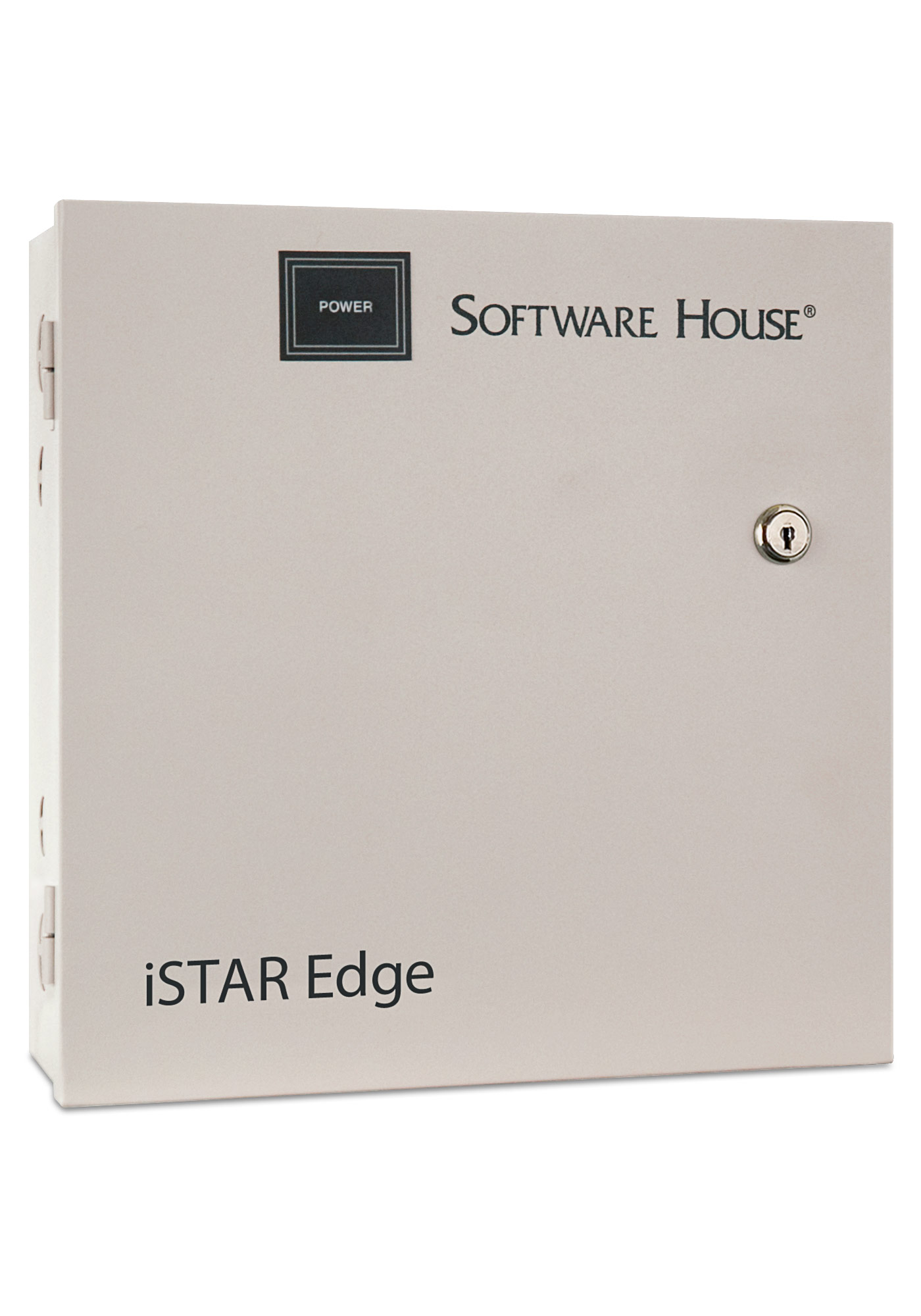

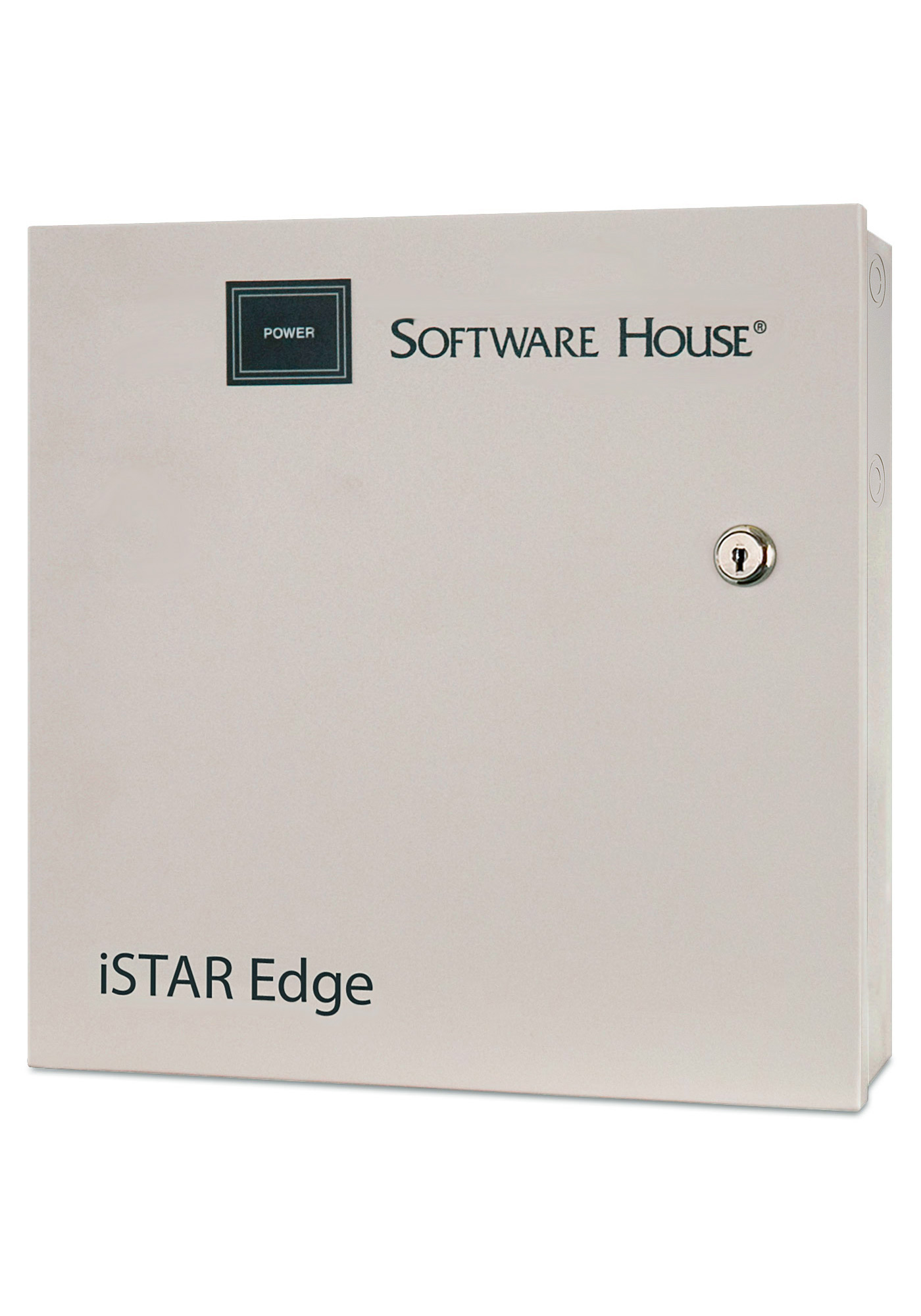

iSTAR Edge Controller

iSTAR Edge is a powerful, IP edge access control device that provides a strong feature set to secure any door. Available in one-, two- or four-reader models to provide the right size controller for your specific application. Its optional Power over Ethernet (PoE) module provides ample power for two doors, and allows iSTAR Edge to leverage existing network infrastructure to reduce installation costs. iSTAR Edge also provides superior features including advanced iSTAR clustering, door monitoring, and anti-passback.

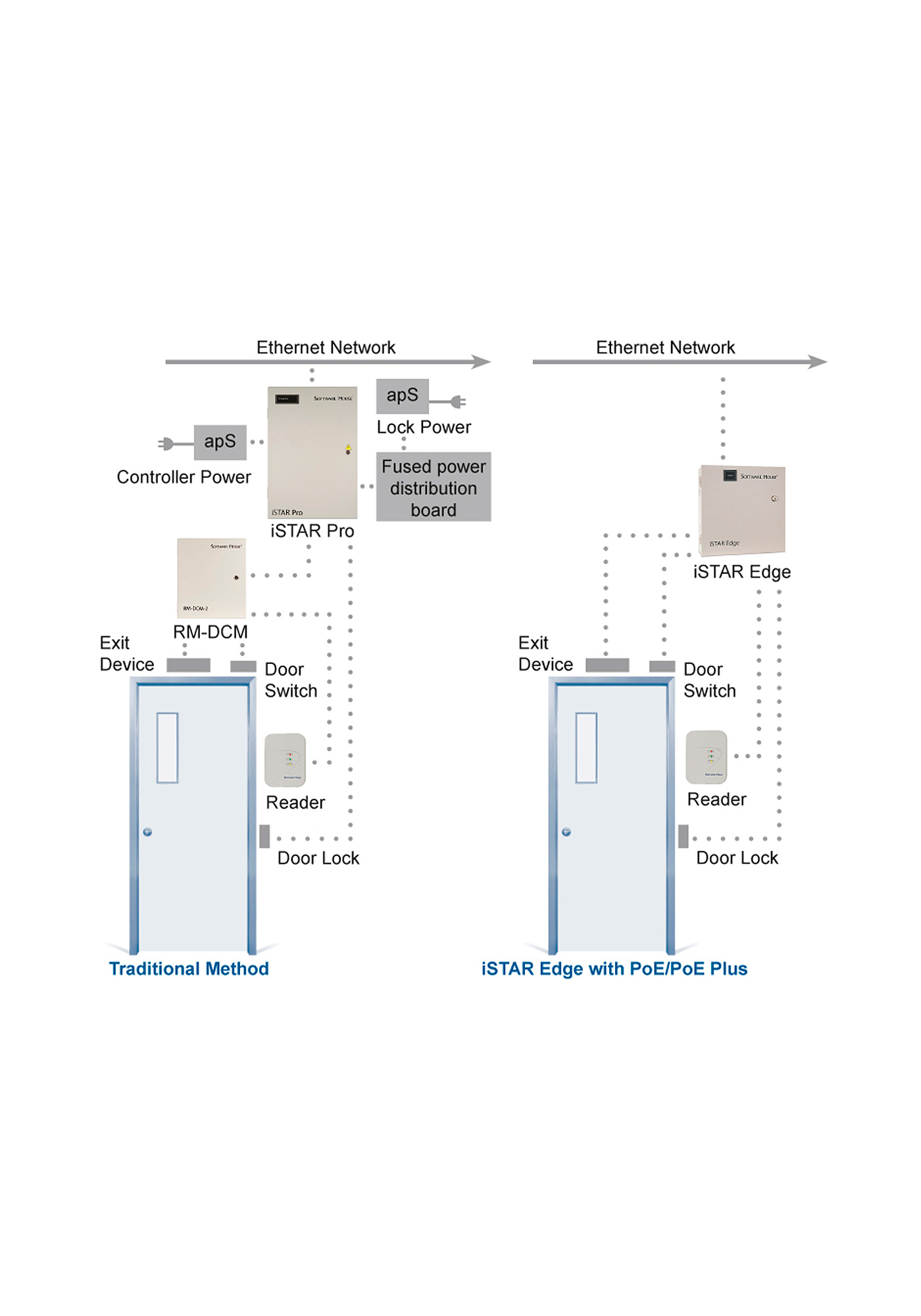

  • Controls and powers all access control devices at the door to minimize costly wiring
  • Optional PoE plug-in module features PoE Plus, with enough power for two doors
  • Includes advanced clustering, peer-to-peer communication, intrusion zones and keypad commands, extended card numbers, advanced door monitoring, and anti-passback
  • Localized access control decision making with storage for up to 400,000 personnel records
  • Dedicated input for fire alarm interlock releases door locks during fire conditions

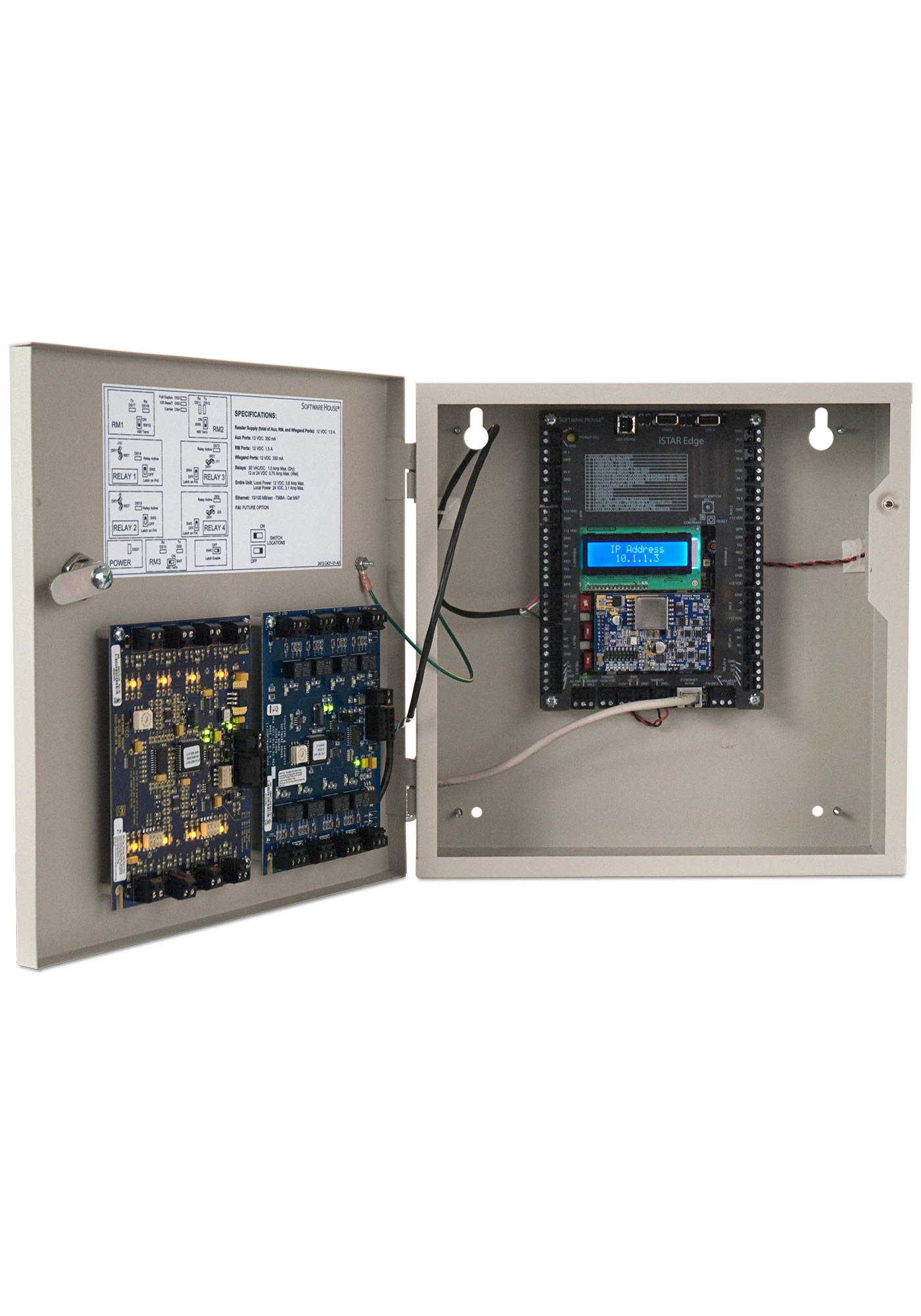

  • Full complement of inputs/outputs plus optional I/O expansion modules
  • Local LCD and LEDs provide clear startup and troubleshooting information
  • Onboard 256-bit AES encryption; FIPS 197 listed
  • Jumper/selectable 12 or 24 VDC for lock power
  • Fully compatible with C•CURE 9000 and C•CURE 800/8000
 A+E Specifications
 Data Sheets
 Knowledge Base Article
 Product Comparison Charts
 Regulatory Information
 Release Notes
 Technical Bulletins

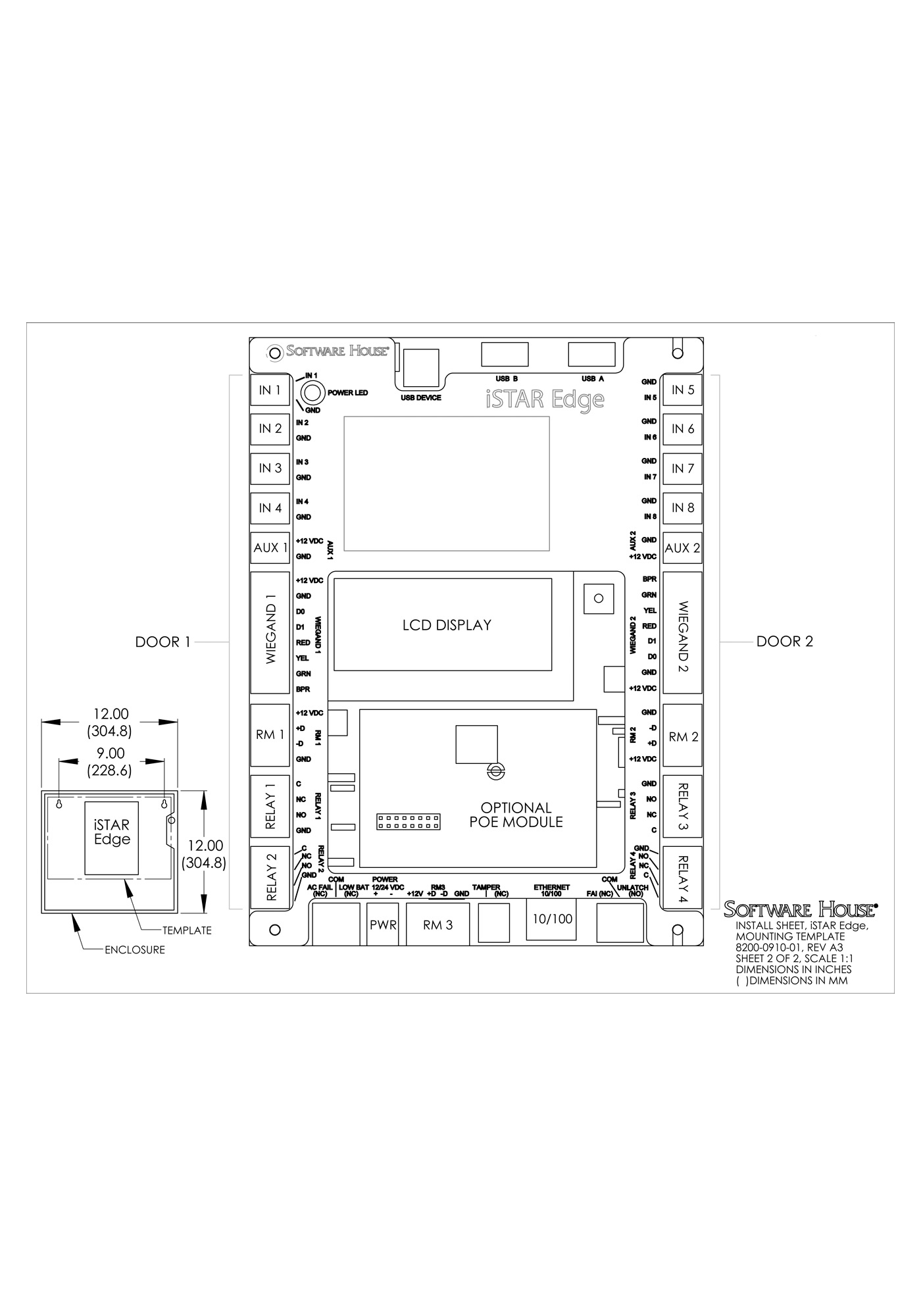

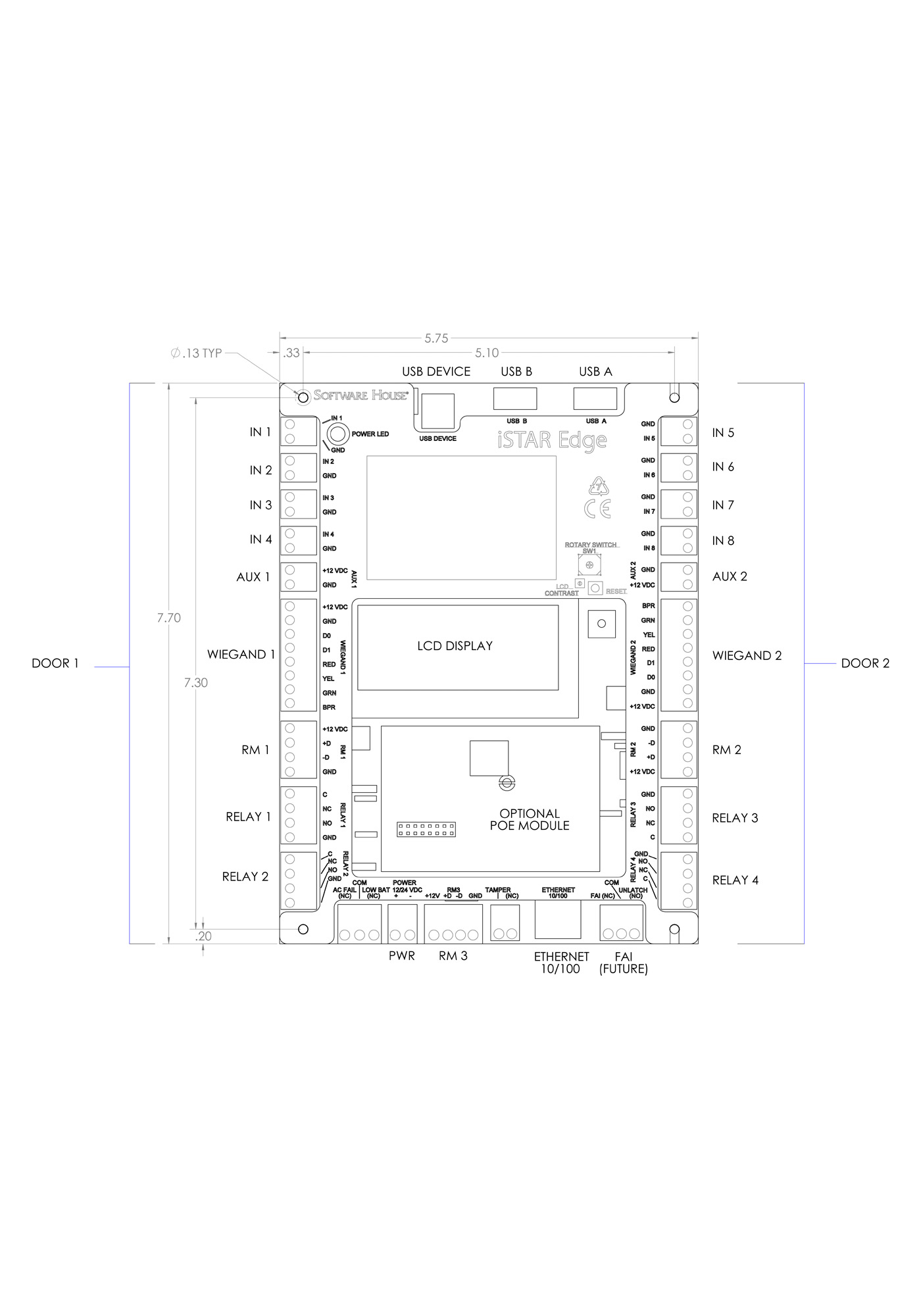

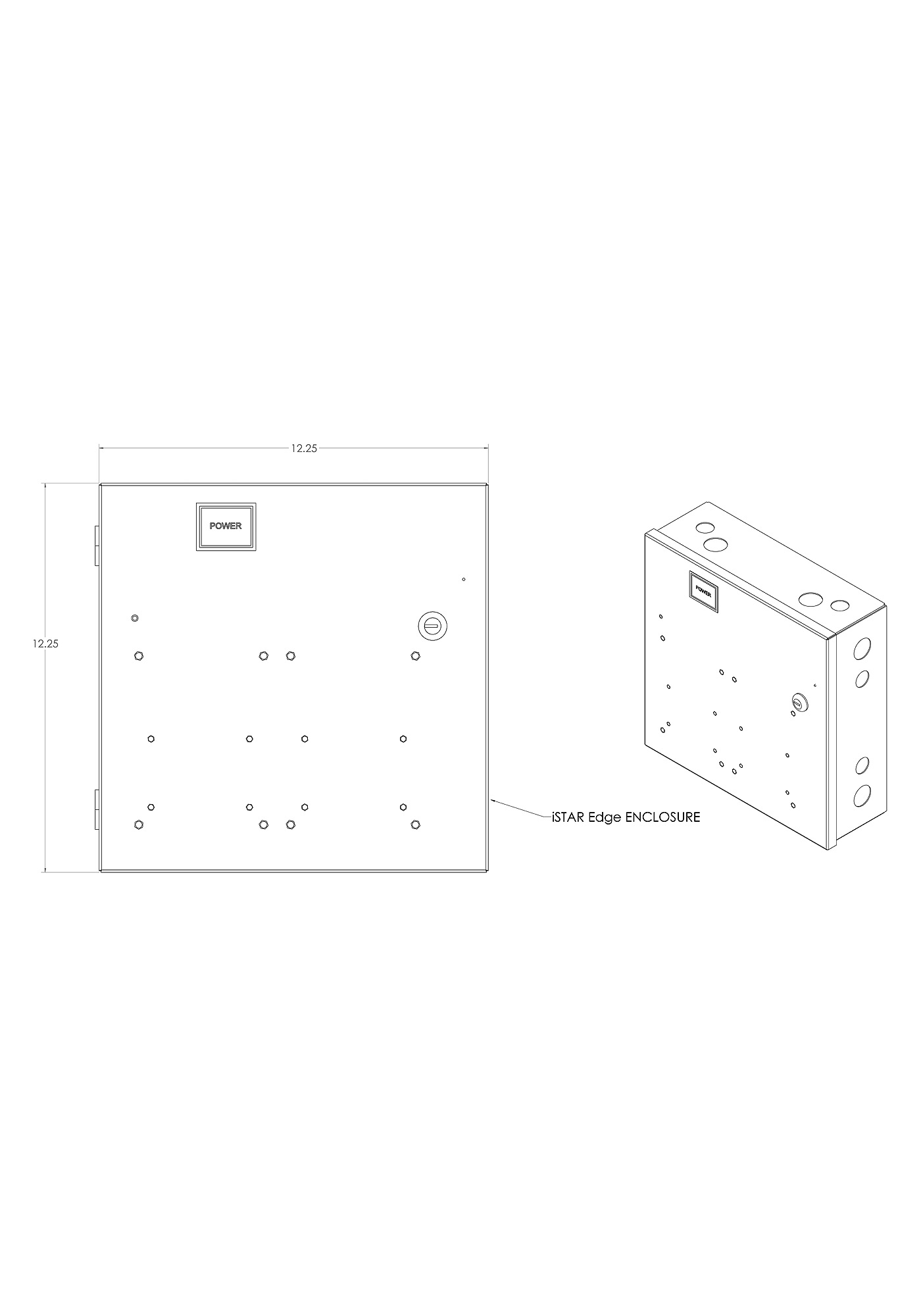

 Technical Drawings
